Page Writes by Query

Overview

The Page Writes by Query report in Database Health Monitor helps identify SQL queries that generate the highest number of page writes within a specific database. This report is essential for performance tuning, as excessive page writes can lead to disk I/O bottlenecks, increased transaction log usage, and slower query execution.

Understanding the Report

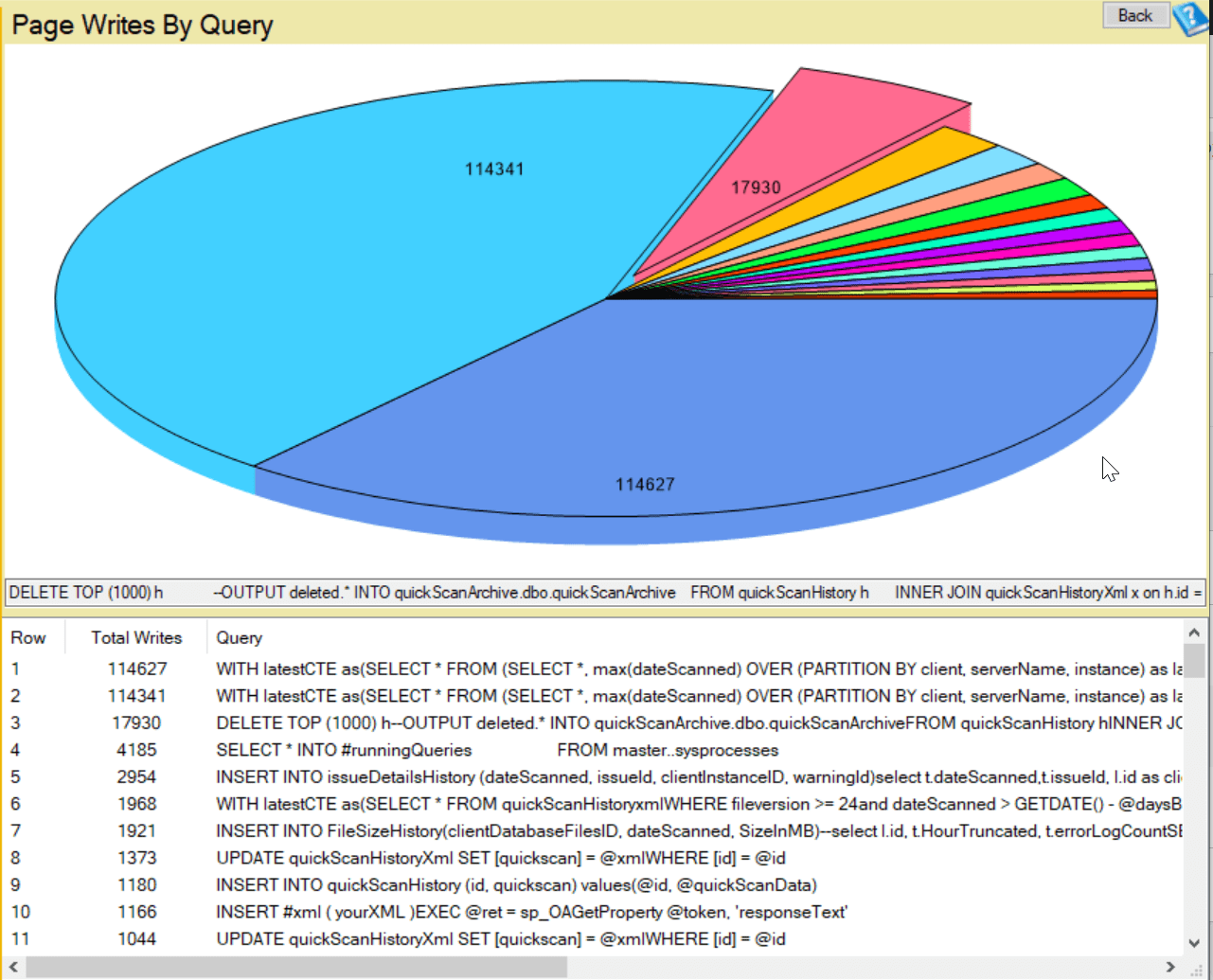

1. Pie Chart Visualization

  • The pie chart displays a visual breakdown of queries contributing to page writes.
  • Larger slices indicate queries with higher write activity, potentially highlighting inefficient operations such as excessive DELETEs, INSERTs, UPDATES, or SELECT INTO statements.
  • Each slice is labeled with the total page writes associated with that query.

2. Query Breakdown (Tabular Data)

Below the pie chart, a detailed table lists the queries in descending order of page writes.

  • Columns:
    • Row – The ranking of the query based on total page writes.
    • Total Writes – The total number of page writes generated by the query.
    • Query – The SQL statement responsible for the writes.

Interpreting the Report

High Page Write Queries to Watch For:

  1. DELETE Statements:
    • Large DELETEs (especially without indexing or partitioning) can trigger excessive page writes and escalate transaction log growth.
    • Example in the screenshot: DELETE TOP (1000) h OUTPUT deleted.* INTO quickScanArchive.dbo.quickScanArchive FROM quickScanHistory h
    • Solution: Consider batching DELETEs, using partitioned tables, or archiving old data efficiently.
  2. INSERT Statements:
    • Queries inserting large amounts of data can cause a spike in page writes.
    • Example in the screenshot: INSERT INTO quickScanHistory (id, quickscan) VALUES(@id, @quickScanData)
    • Solution: Optimize by reducing transaction size, using minimal logging, and ensuring indexes are properly maintained.
  3. UPDATE Statements:
    • Updates that modify large datasets or indexed columns can cause excessive page writes.
    • Example in the screenshot: UPDATE quickScanHistoryXml SET [quickscan] = @xml WHERE [id] = @id
    • Solution: Consider narrowing the WHERE clause, using computed columns, or evaluating the necessity of the update.
  4. SELECT INTO:
    • Queries using SELECT INTO #tempTable may result in significant writes to tempdb, especially when used inefficiently.
    • Example in the screenshot: SELECT * INTO #runningQueries FROM master.sysprocesses
    • Solution: Use explicit temporary tables, optimize joins, and avoid unnecessary data duplication.

Optimization Strategies

  • Batch Operations: Instead of large DELETEs/INSERTs, process data in smaller chunks to minimize transaction log impact.
  • Index Optimization: Ensure indexes are maintained and optimized to reduce unnecessary writes.
  • Partitioning: Consider table partitioning for large datasets to manage writes more efficiently.
  • Minimal Logging: Use simple recovery mode (if appropriate) and take advantage of bulk-logged operations where possible.
  • Monitoring tempdb Usage: Reduce unnecessary SELECT INTO queries that heavily use tempdb.
